Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech

Short Description:


Product Detail

Related Video

Feedback (2)

With state-of-the-art technologies and facilities, strict good quality regulate, reasonable cost, exceptional assistance and close co-operation with prospects, we're devoted to supplying the top benefit for our customers for Led Pillar Wedding Decorationwalk Stand, Led Art Display, Led Display Pricelist, "Change for the better!" is our slogan, which means "A better world is before us, so let's enjoy it!" Change for the better! Are you ready?
Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech Detail:



Yonwaytech 16:9 Golden Ratio LED Cabinet Good For 2K / HD / 4K…… Signal Dot To Dot Fine Pitch LED Display.

Innovative cabinet structural design ELITE HD LED display series P0.9375,P1.25,P1.56,P1.875,P2.5.

An ultra slim 16:9 ratio HD led panel brings you an extraordinary visual experience.

LED Panel Size: 600mm x 337.5mm x 48mm / 23.6” x 13.3” x 1.89”

LED Panel Weight: 7 kgs / 15.4 lbs



Yonwaytech elite slim HD p1.25 led display shenzhen factory

The lightweight Elite HD LED display from Yonwaytech LED Display is easy to carry, transport and install,

saving a good amount of labor cost and time.



P0.9375, P1.25, P1.56 HD Narrow Pixel Pitch LED Display ELITE Series

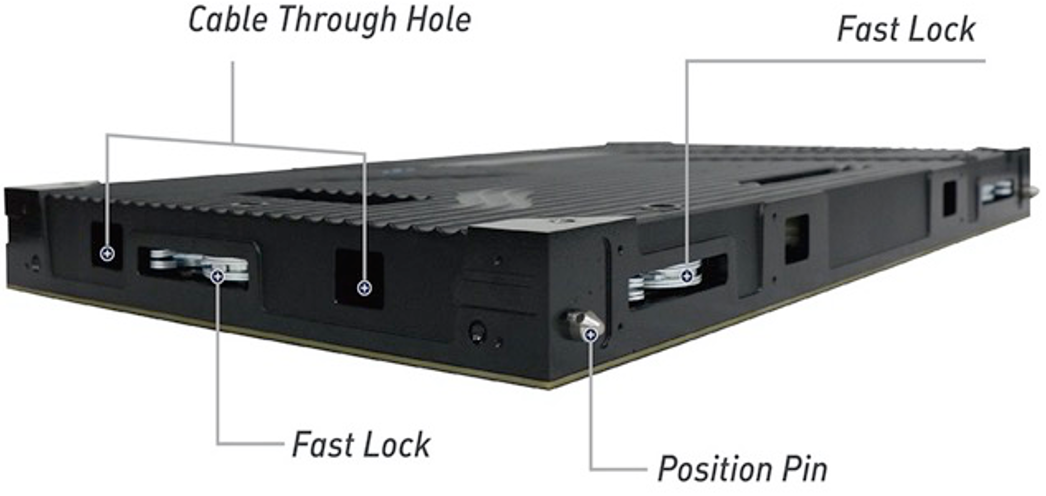

Ultra slim led panel with hidden handles, fast locks, panel module, power and signal indicator and internal wiring generating the

Elite HD led cabinet with better outlooking and more stability against external interference.



P0.9375, P1.25 HD Narrow Pixel Pitch LED Display ELITE Series



High Refresh HD LED Video Wall For Command Center / Security Center / Broadcast Studio……

High contrast and vivid video / flatness and seamless video wall is a good choice to replace LCD or Projector.



yonwaytech hd narrow pixel pitch led screen



With new die-cast aluminum high strength materials,ultra-high precision CNC.

The flatness tolerance of the cabinet is up to 0.1mm.

Fanless quiet HD LED Screen and well heat dissipation aluminum light weight led cabinet with effective assembly makes more

cost saving in installation.



 P0.9375,P1.56 HD Narrow Pixel Pitch LED Display ELITE Series



Yonwaytech 16:9 Golden Ratio LED Cabinet Good For 2K / HD / 4K…… Signal Dot To Dot LED Display.

The elite series HD LED display is bespoke in size, flexible in installation and compatible with all the prevailing video formats,

making it easier to create 4K,8K or 16K LED video wall.



P1.25 HD Narrow Pixel Pitch LED Screen (2)



  P1.25 HD Narrow Pixel Pitch LED Screen (4)



Power And Signal Redundancy Design Makes HD Fine Pitch LED Display Never Turned Off.

Supporting dual backup control system, dual backup power supply, automatically switch the video content in the LED screen when

it occurring any problems to make sure a stable and reliable LED Video Wall performance.



P0.9375, P1.25, P1.875 HD Narrow Pixel Pitch LED Display ELITE Series



Easy fully modular magnetic frontal service and installation with screw, fast lock, modules, power supplies, PCB control board, maximized saving installation space, labor cost and time.

Integrated with all led screen components, avoiding headachy work of module assembly, minimize led bulbs damaged during installation.



P0.9375 HD Narrow Pixel Pitch LED Display ELITE Series







Yonwaytech ELITE HD LED Display Applications.

Environments like control rooms need close monitoring and will require a fine pixel pitch HD LED Display.

On the other hand, industries like retail, where space is a concern, ultra – slim High Resolution LED Display would be the best choice.

While selecting the size of the display, keep in mind the area of your indoor space.

Large venues like convention halls or control rooms will demand a bigger size screen.

Starting with a pixel pitch that is as low as P1.25, depending on the viewing distance these displays can go up to P1.875.

The lesser the viewing distance, the smaller should be the pixel pitch.



P1.25 p0.9375 HD Narrow Pixel Pitch LED Screen





Yonwaytech ELITE HD LED Display Technical Parameter:

Y-HD-600×337.5-ELITE:





ELITE HD LED Display

P0.9

P1.25

P1.56

P1.8

P2.5

Pixel Pitch

0.9375mm

1.25mm

1.56mm

1.875mm

2.5mm

LED Type

Mini-LED

SMD 3-IN-1

SMD 3-IN-1

SMD 3-IN-1

SMD 3-IN-1

Pixel Density (dots/)

1,137,778.00

640,000.00

409,600.00

285,333.00

161,185.00

Panel Size (W×H×D) (mm)

600×337.5×48.5

Panel Diagonal

27.1”

Panel Resolution (W×H)

640×360

480×270

384×216

320×180

240×135

Panel Weight (kgs / lbs)

7kgs / 15.4 lbs

Brightness (nits)

600-800 nits

Refresh Rate

3840Hz

Panel Max./Ave. Power Consumption

135/40 watts

130/38 watts

128/36 watts

125/35 watts

120/35 watts

Contrast Ratio

5000:1

Viewing Angle (Horz./Vert.)

170°/170°

Brightness Uniformity

>98.6%

Color Uniformity

>98.6%

Color Gamut

100% NTSC

Color Temperature, Adjustable (k)

3,000-18,500 Optional

LED Lifetime (hrs)

100,000

Operating Temperature
(10-85% relative humidity, non-condensing)

-20° to 40° C / -4° to 104° F




Product detail pictures:

Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech detail pictures

Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech detail pictures

Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech detail pictures

Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech detail pictures

Good User Reputation for P6 Vs P10 Led - P0.9375,P1.25,P1.56,P1.875 HD Narrow Pixel Pitch LED Display ELITE Series – Yonwaytech detail pictures
